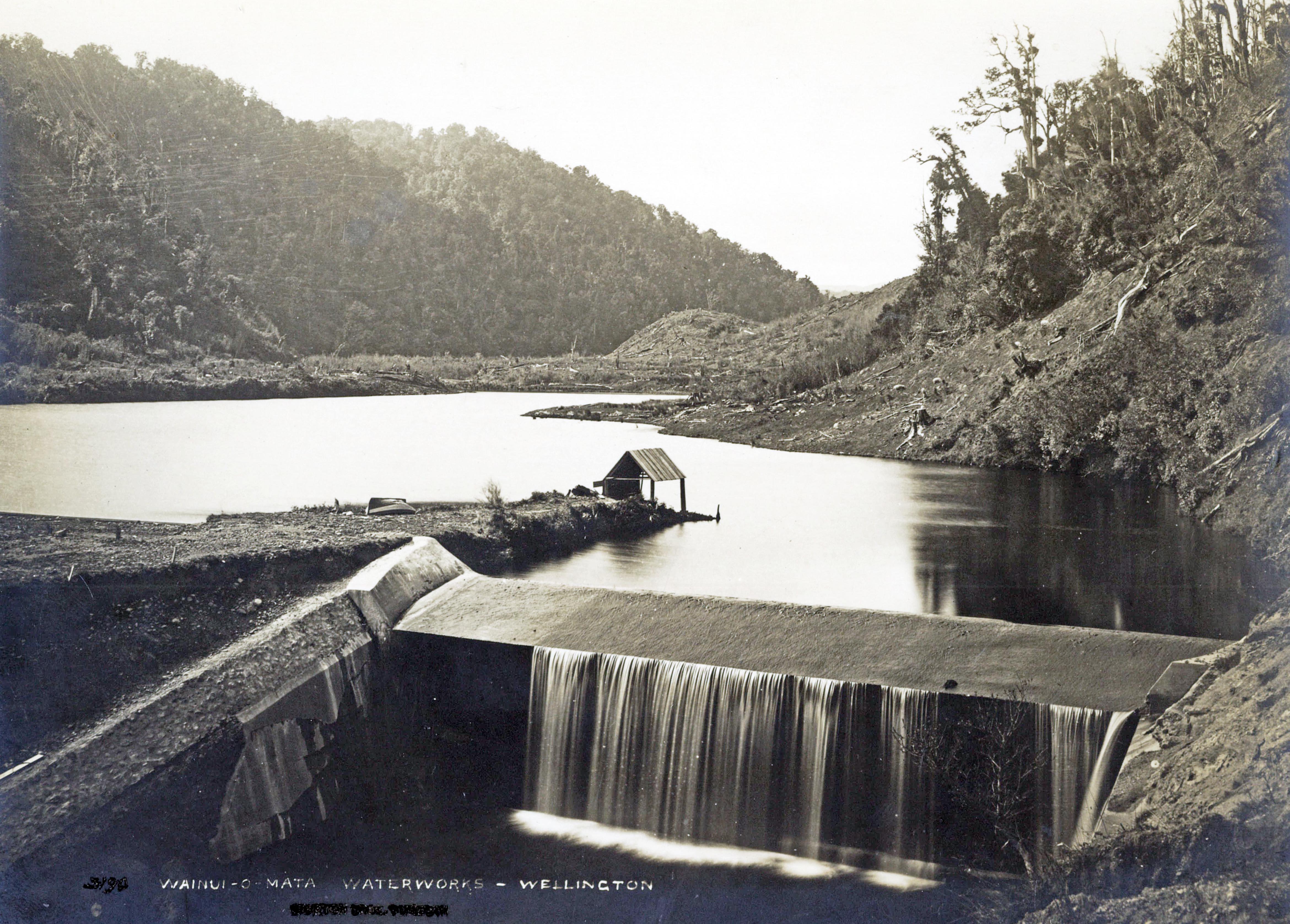

Originally known simply as ‘the dam,’ it was later renamed ‘Lower Dam’ after the construction of Morton Dam further upstream. Photo circa 1884.
This site was chosen in 1878 and construction began the same year. Completed in 1884, this dam stood as one of the oldest in the country and served as a crucial water supply for Wellington until the 1950s. Included was 27km of pipeline to Wellington City.

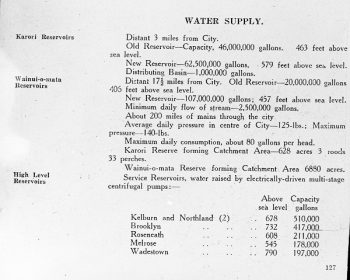

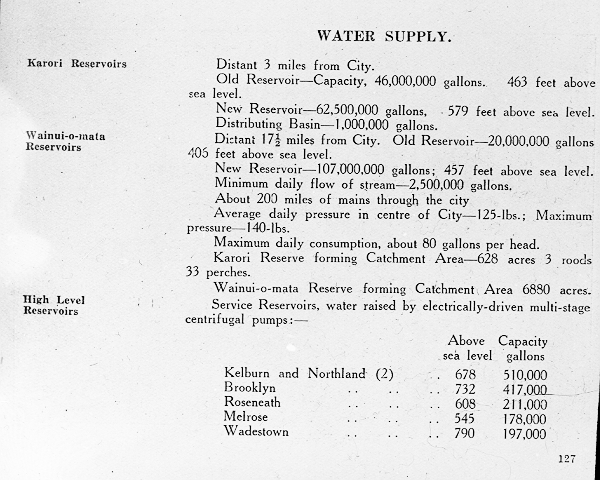

The concrete dam facilitated the conveyance of water to Karori, a Wellington suburb that housed a smaller dam. By 1887, the implementation of the Wainuiomata Scheme yielded an output of 176 liters per day, meeting the water needs of approximately 26,000 individuals.

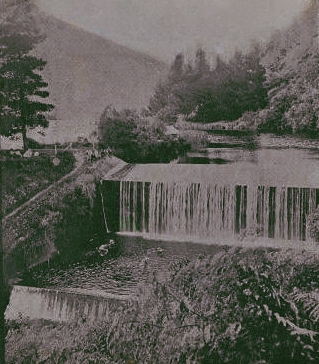

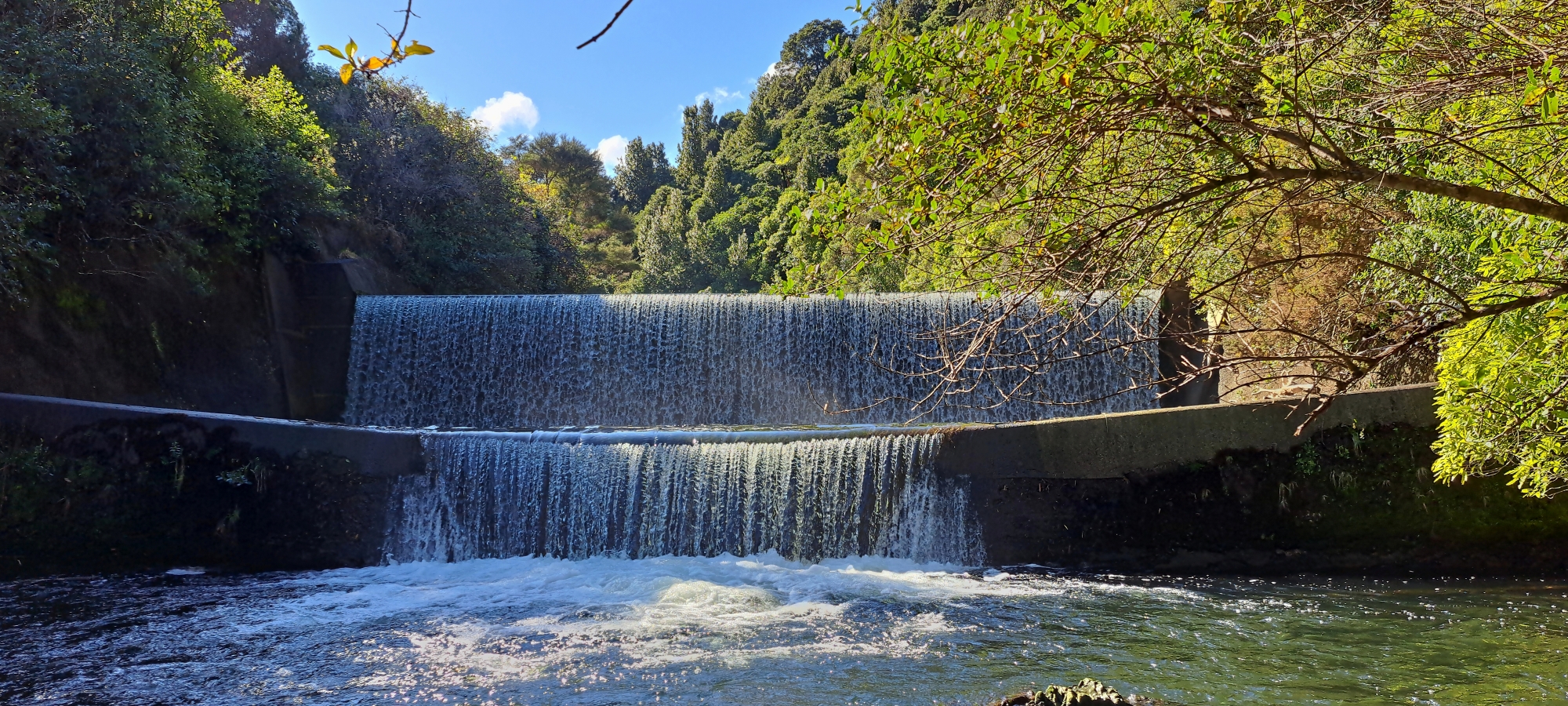

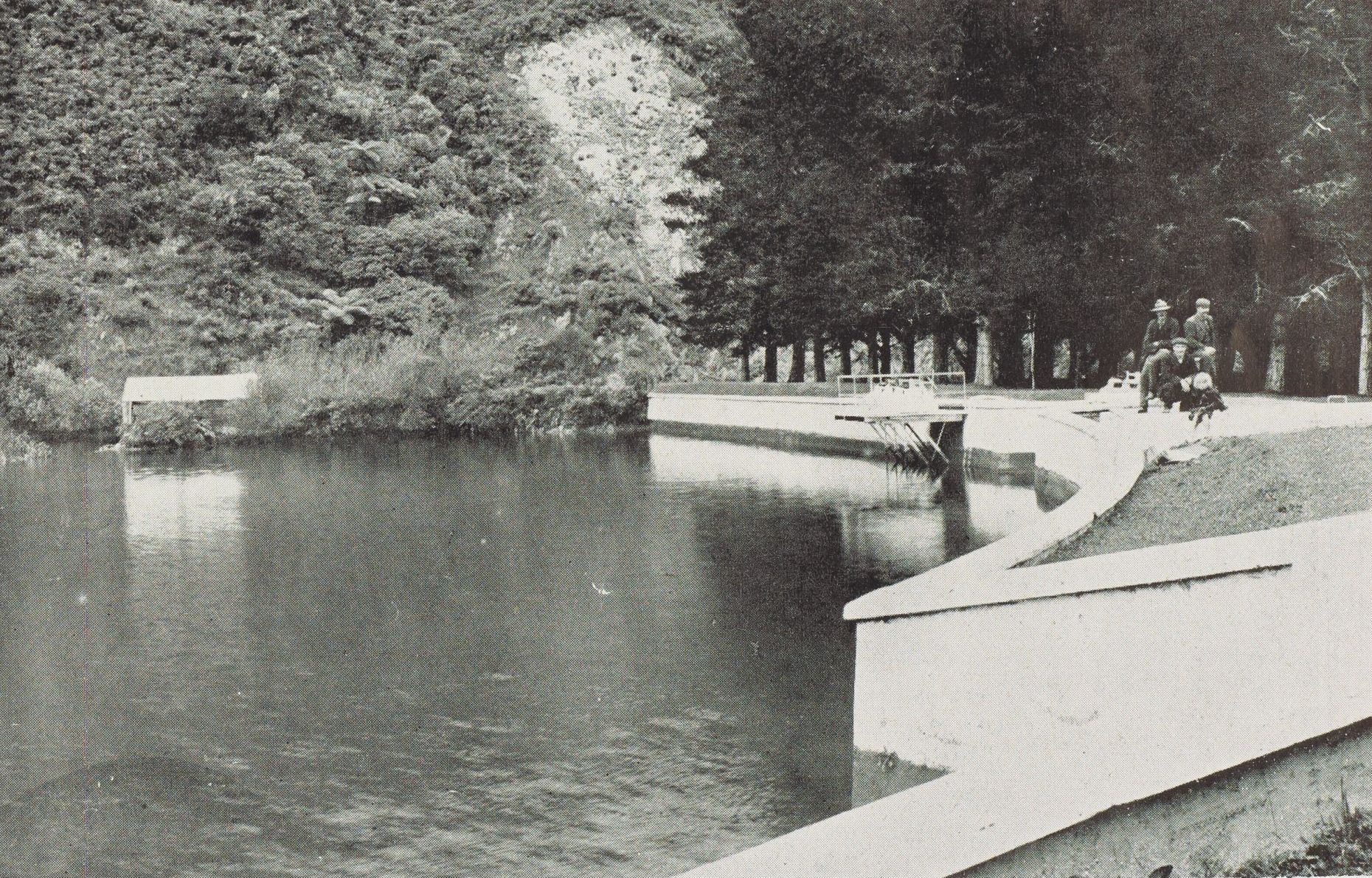

The dam featured a unique design, standing at 10 meters tall and comprising an earthfill embankment. What set it apart was its almost vertical concrete wall on the upstream side, a characteristic not commonly seen in similar structures. Additionally, it had an overflow spillway situated in the former river channel on its left abutment. Another distinctive aspect of this dam was the exceptionally wide crest width of its earthfill embankment, deviating from the norm for dams of its kind. The combination of the near-vertical concrete wall on the upstream face and the unusually broad crest width underscored its atypical design.
Damage to the dam in 1883
In the year 1883, a significant flood breached the dam wall and carved out a route behind that nearly wiped out the dam workers huts. The damage to the dam itself according to a Post article dated 25 October 1883, was immediately visible, with a large gap in the face wall of the dam where the concrete had been washed away by the force of the water. The filling at the back, meant to manage surplus water, had also been completely washed out. If it had been coated with boulders set in cement before the flood, the damage could have been prevented. Workers were then engaged in replacing the filling, a process that was reported to take at least a month due to the limited number of hands available. The water’s force had been so great that it had carved a hole several feet deep into the solid rock at the base and nearly wiped out nearby dam workers huts.
Decommissioning of the Old Dam
A 2004 safety review, prompted by stricter dam safety guidelines, found the dam had a low potential impact, meaning a breach wouldn’t significantly endanger the downstream population, and the spillway capacity was sufficient. However, the upstream concrete wall was highly vulnerable to earthquakes and needed reinforcement. This instability made the current operation, with the lake usually dewatered, unsustainable, as an earthquake could cause the embankment behind the wall to erode.

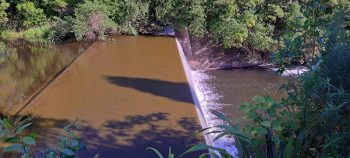

It was decided that upgrading the dam was necessary to meet safety guidelines, and the solution chosen was to lower the spillway. This kept much of the original structure intact and ensured that, even if the dam wall failed in a major earthquake, the low water level would reduce risks.

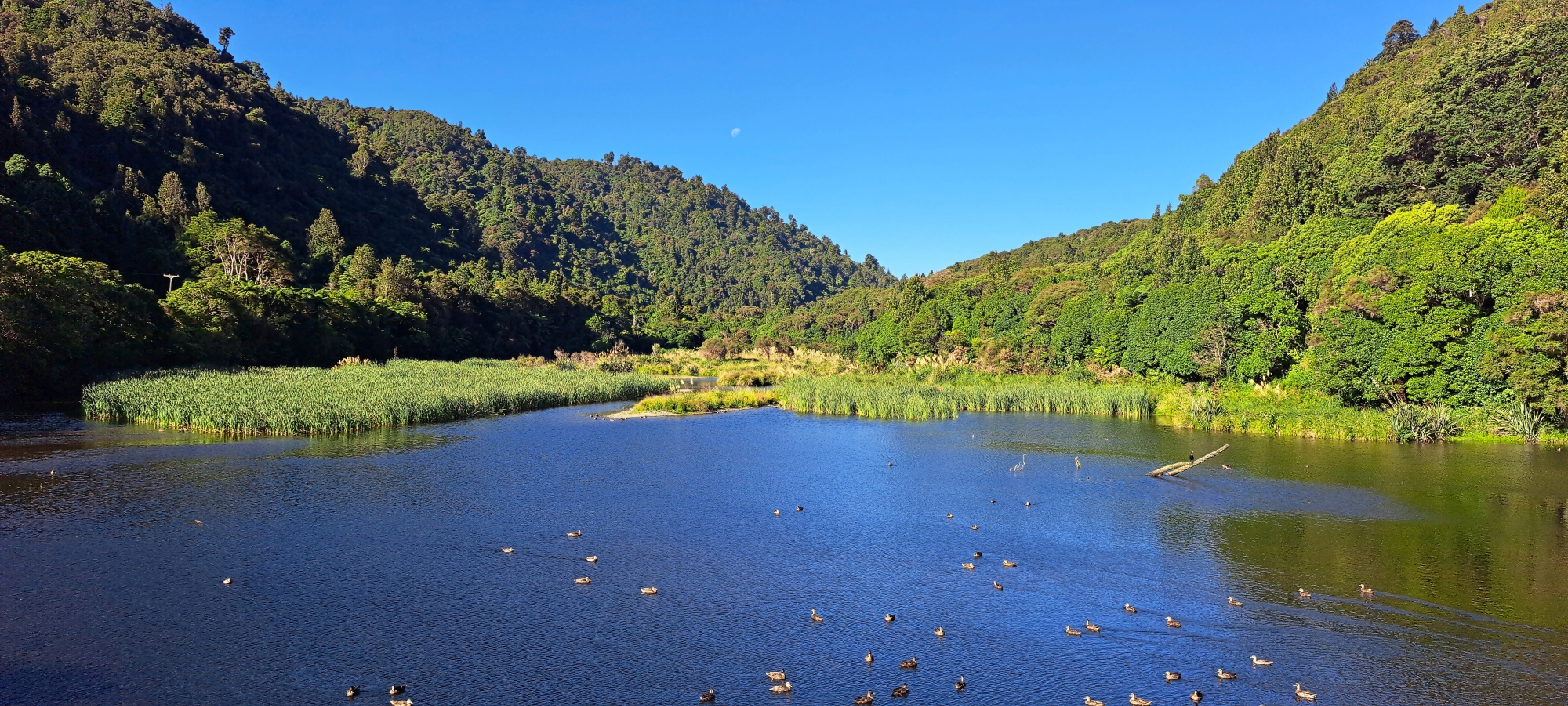

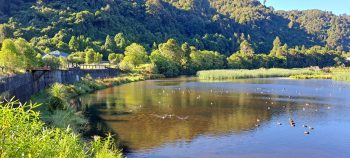

Decommissioning the dam turned the reservoir into a shallow lake and wetland, now home to native birds like kereru, bellbirds, tui, and paradise ducks. After 129 years of restricted access, the public was allowed to visit in March 2013, following regeneration efforts by the Greater Wellington Regional Council.
